Rust codegen

The library can generate Rust code for primal functions, derivative functions, and combined multi-kernel crates.

The generated Rust currently uses:

• deterministic naming
• a slice-based ABI
• explicit workspace variables stored in a mutable workspace slice
• configurable scalar types (f64 or f32)
• std and no_std backend modes

When the generated code uses vector norms or special functions that need shared support code, gradgen emits auxiliary Rust helpers once at module scope. This includes helpers such as norm2, norm2sq, norm1, norm_inf, norm_p, norm_p_to_p, erf, and erfc when they are required by the generated crate.

Generate Rust source in memory

from gradgen import Function, SX

x = SX.sym("x")
f = Function("square_plus_one", [x], [x * x + 1], input_names=["x"], output_names=["y"])

result = f.generate_rust()
print(result.source)
print(result.workspace_size)

The generated function looks like a plain Rust function with this style of signature:

pub fn square_plus_one(x: &[f64], y: &mut [f64], work: &mut [f64]) {
    // ...
}

For multiple inputs and outputs, each declared input and output becomes its own slice argument. If a generated kernel does not need workspace, the argument is still present but named _work to avoid an unused-variable warning in Rust.

You can also configure the backend explicitly:

from gradgen import RustBackendConfig

config = (
    RustBackendConfig()
    .with_backend_mode("no_std")
    .with_scalar_type("f32")
    .with_function_name("eval_kernel")
)

result = f.generate_rust(config=config)

no_std crates use libm by default for their math dependency.

Rust-facing names follow two different rules:

• symbolic Function(...) names and input/output names may still be ordinary user-facing strings such as "my function" or "out value". During code generation they are sanitized into simple Rust identifiers.
• explicit backend overrides such as crate_name= and RustBackendConfig.with_function_name(...) are validated strictly and must already be valid Rust-style identifiers matching [A-Za-z_][A-Za-z0-9_]*.

In addition, generated Rust now fails early if sanitization would create an ambiguous API, for example when:

• two different Python names collapse to the same Rust identifier
• a generated argument name would collide with internal ABI names such as work
• an explicit crate or function name is a Rust keyword like fn

This keeps naming problems visible at Python/codegen time instead of surfacing later as confusing Rust compiler errors.

Create a Rust project on disk

You can also create a minimal Cargo project at a user-specified path:

from gradgen import Function, SX

x = SX.sym("x")
f = Function("square_plus_one", [x], [x * x + 1], input_names=["x"], output_names=["y"])

project = f.create_rust_project("./square_plus_one")
print(project.project_dir)

This writes:

• Cargo.toml
• README.md
• src/lib.rs

The generated README.md contains simple generic instructions such as:

cargo build

Custom crate and function names

project = f.create_rust_project(
    "/tmp/my_kernel",
    crate_name="my_kernel",
    function_name="eval_kernel",
)

There is also a module-level helper if you prefer:

from gradgen import create_rust_project

project = create_rust_project(f, "/tmp/my_kernel")

Create a derivative Rust bundle

You can generate a directory containing Rust crates for the primal function, Jacobians, and Hessians:

bundle = f.create_rust_derivative_bundle(
    "/tmp/my_bundle",
    simplify_derivatives="high",
)

This creates a bundle directory with entries such as:

• primal/
• f_jacobian_<input_name>/
• f_hessian_<input_name>/ for scalar-output functions

There is also a module-level helper:

from gradgen import create_rust_derivative_bundle

bundle = create_rust_derivative_bundle(f, "/tmp/my_bundle")

Build a single crate with one or more source functions

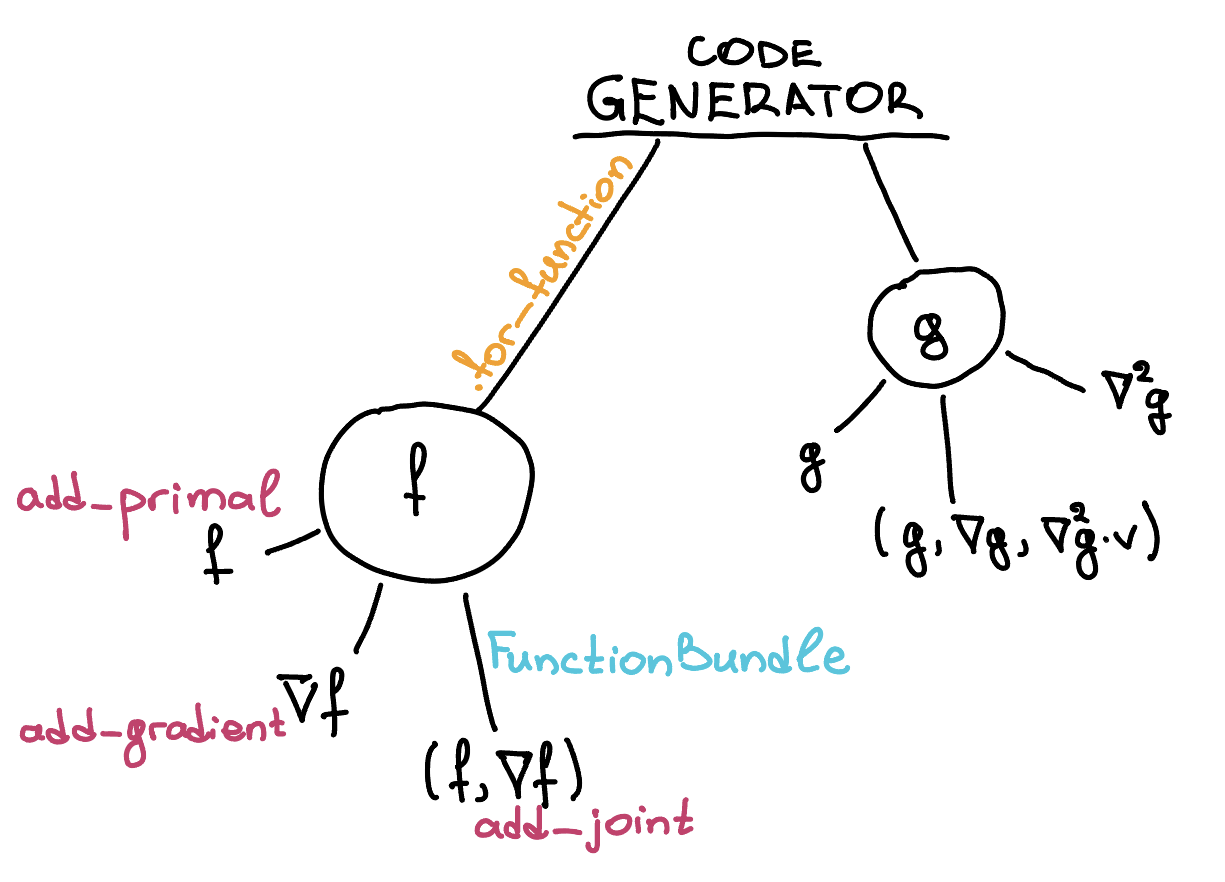

If you want one Cargo crate containing several related kernels, use CodeGenerationBuilder. The builder can target one source function or many:

from gradgen import CodeGenerationBuilder, FunctionBundle, RustBackendConfig

builder = (
    CodeGenerationBuilder()
    .with_backend_config(
        RustBackendConfig()
        .with_backend_mode("no_std")
        .with_scalar_type("f32")
    )
    .for_function(f)
        .add_primal()
        .add_gradient()
        .add_hvp()
        .add_joint(
            FunctionBundle()
            .add_f()
            .add_jf(wrt=0)
        )
        .with_simplification("medium")
        .done()
)

project = builder.build("/tmp/my_kernel")

Each scoped builder returned by for_function(...) configures the kernels generated for one source Function. Call .done() to commit that block back to the parent builder. Inside that scoped builder, currently supported builder requests include:

• add_primal()
• add_gradient()
• add_jacobian()
• add_vjp()
• add_joint(FunctionBundle().add_f().add_jf(wrt=0))
• add_joint(FunctionBundle().add_f().add_hvp(wrt=0))
• add_joint(FunctionBundle().add_f().add_jf(wrt=0).add_hvp(wrt=0))
• add_hessian()
• add_hvp()

For backward compatibility, CodeGenerationBuilder(f) still works as a single-function shorthand. The examples below use the more general for_function(...).done() style.

More generally, add_joint(...) accepts a FunctionBundle, which can describe primal outputs plus one or more derivative artifacts for one or more wrt blocks. The builder expands that bundle into one or more combined symbolic functions, simplifies them, and then generates Rust from those shared expression graphs. This helps the generated kernels reuse intermediate work across the requested outputs.

For example:

bundle = (
    FunctionBundle()
    .add_f()
    .add_jf(wrt=[0, 1, 2])
    .add_hessian(wrt=[0, 1])
)

builder = (
    CodeGenerationBuilder()
    .for_function(f)
    .add_joint(bundle)
    .done()
)

Builder-generated function names are prefixed with the crate name and include the source function name. For example, with crate name my_kernel and a single source function named f the generated Rust API looks like:

• my_kernel_f_f
• my_kernel_f_grad
• my_kernel_f_jf
• my_kernel_f_hessian
• my_kernel_f_hvp
• my_kernel_f_f_jf
• my_kernel_f_f_jf_hvp

If the crate contains multiple source functions, the source function name is still used to keep the Rust entrypoints distinct:

• my_kernel_f_f
• my_kernel_f_jf
• my_kernel_g_f
• my_kernel_g_hvp

If you explicitly set crate_name or function_name, those names must already be acceptable Rust identifiers. The builder and backend will reject values that need sanitization, values that start with digits, and Rust keywords. By contrast, source-function names and input/output names are still sanitized automatically when Rust is generated.

You can also request a uniform simplification pass for every generated kernel:

builder = (
    CodeGenerationBuilder()
    .for_function(f)
        .add_primal()
        .add_jacobian()
        .add_hvp()
        .add_joint(
            FunctionBundle()
            .add_f()
            .add_jf(wrt=0)
            .add_hvp(wrt=0)
        )
        .with_simplification("medium")
        .done()
)

With this setting, simplification is applied to all generated kernels for that source function, including the separate primal/Jacobian/HVP kernels and the joint kernel.

Common Subexpression Elimination

Common Subexpression Elimination (CSE) searches for instances of identical symbolic expressions and replaces them with a single variable. This simplifies the overall expression. This is especially useful as a precursor to Rust code generation.

As an example, if we have

z = x * x + 1
y = z + z * z

then, y evaluates

$$y = x^2 + 1 + (x^2 + 1)(x^2 + 1),$$

where $x^2$ shows up three times, and so does $x^2 + 1$. It make sense, therefore, to compute y as follows

$$w_0 \gets x^2, \quad w_1 \gets w_0 + 1, \quad y \gets w_1 + w_1 \cdot w_1.$$

The following script identifies the auxiliary variables $w_i$:

from gradgen import SX, cse

x = SX.sym("x")
z = x * x + 1
y = z + z * z

plan = cse([y])
for assignment in plan.assignments:
    print(assignment.name, assignment.expr, assignment.use_count)

You can also build a plan directly from a function:

plan = f.cse(min_uses=2)

where min_uses is the minimum number of times a symbolic sub-expressions needs to be present in the overall symbolic expression to be considered for elimination.
